Description

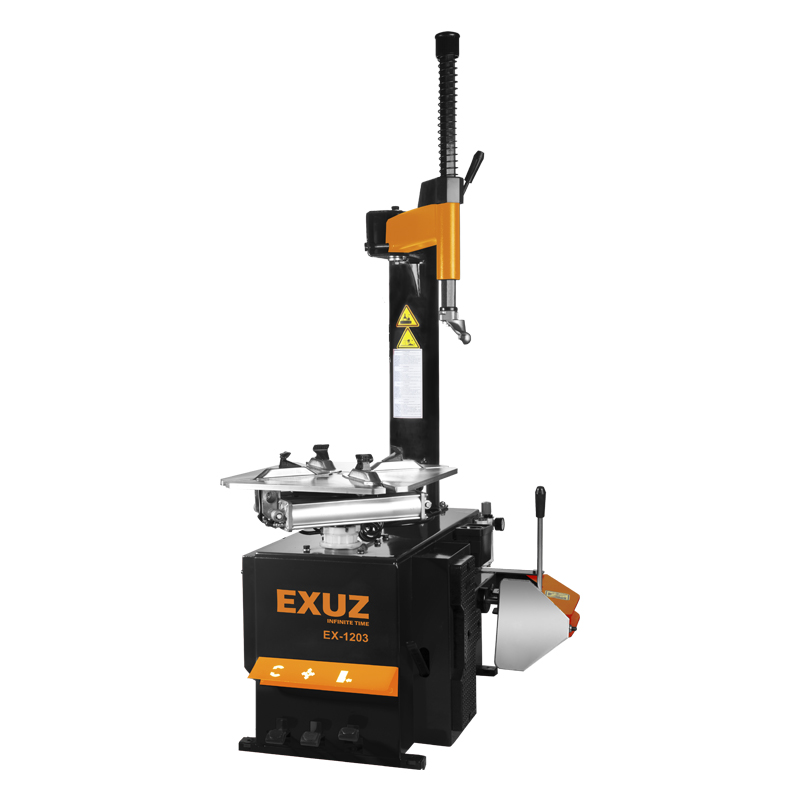

Racing semi-automatic swing arm tire changer, expressly designed for oversize and racing tires. It?s suitable for wheels with a rim from 14? to 26? (max. tire diameter 1143 mm./45?, max. tire width 406mm./16?). It?s suggested for high-volume tire shops.

Features:

1. Manual locking swing arm, convenient and fast
2. Semi-automatic swing arm
3. Clamping jaws are totally one-step die casting
4. RIM CLAMPING METHOD?26? large turntable and high power motor, which increase working strength

Additional information
External locking rim dimensions
12~23″

Internal locking rim dimensions
14~26″

Max.Wheel diameter
?1143mm (45″)

Max.Wheel width
?406mm (16″)

Working Pressure
8-10bar (116-145 psi)

Opitonal Power supply
110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power
0.55/0.75/1.1 kw

Noise Level
<75 dB
