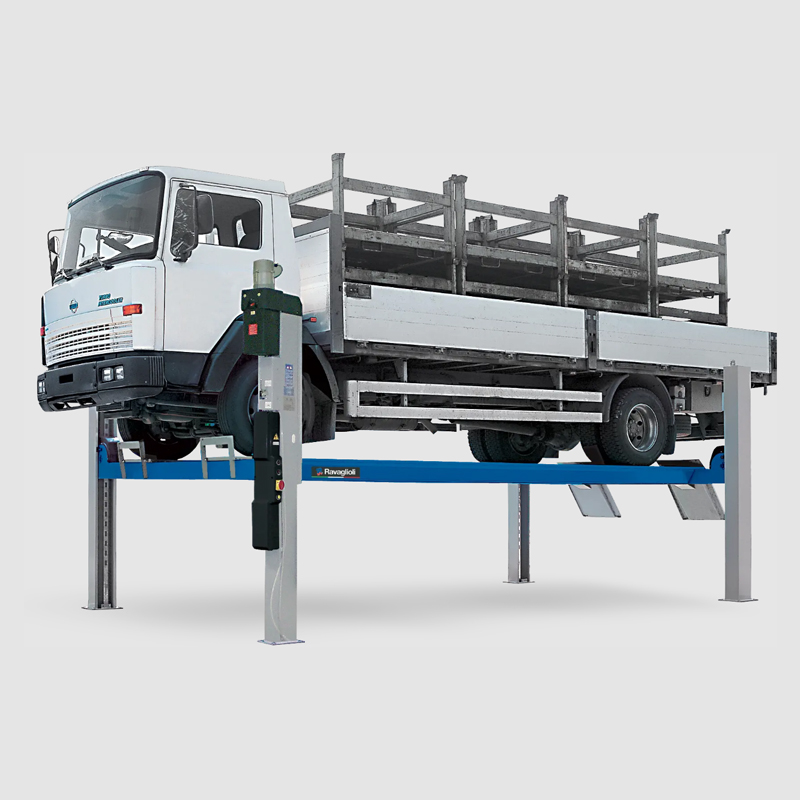

4-post lift RAV4800
8.0 t, electrohydraulic, symmetrical, with level runways, track length 6000 mm, wheel alignment optional, above ground
Описание
- The hydraulic cylinder is located inside the fixed platform and is thus perfectly protected
- High-resistant, galvanised and pre-stretched metal cables
- Large-diameter pulleys with self-lubricating and maintenance-free bushes
- Automatic mechanical back-up safety devices (every 100 mm) with pneumatic release allowing stationary operation with unladen cables
- Immediate-triggering safety stud devices in case a cable slackens or fails
- Automatic anti-toe trap alarm during final stages of lift descent
- Mechanical, electrical and hydraulic safety devices in compliance with the prevailing standard for CE marking
- Low-voltage (24 V) electrical system with control circuit
- Version with flat platforms
Tech Data
Number of columns: 4
Drive mode: Electro-hydraulic
Control: Electric
Installation type: Floor-standing
Capacity: 8,000 kg
Max. lifting height: 1,950 mm
Lifting height: 200 mm
Clear distance between: 3,300 mm
Clear distance between (exit): 3,780 mm
Column height: 2,874 mm
Driveway width: 2,810 mm
Wheel arrangement: Optional
Platform length: 6,000 mm
Platform width: 650 mm
Driveway clearance: 850 – 1,150 mm
Length from approach ramp: 6,974 mm
Drive power: 2.6 kW
Electrical connection: 230/400 V | 50 Hz
Phases: 3
