Launch EVB624

Описание

EV Battery Pack Cell Wireless Equalizer (24 Channels)

The EVB624 is used for balancing the internal cells of battery packs. When detecting significant voltage variance or inconsistent cell voltages among cells within battery packs, use the EVB624 to address the issue of excessive voltage variance. Once the cells inside the battery module are replaced, the EVB624 is widely used to balance the cells, ensuring that the voltage levels of individual cells are uniform.

Features

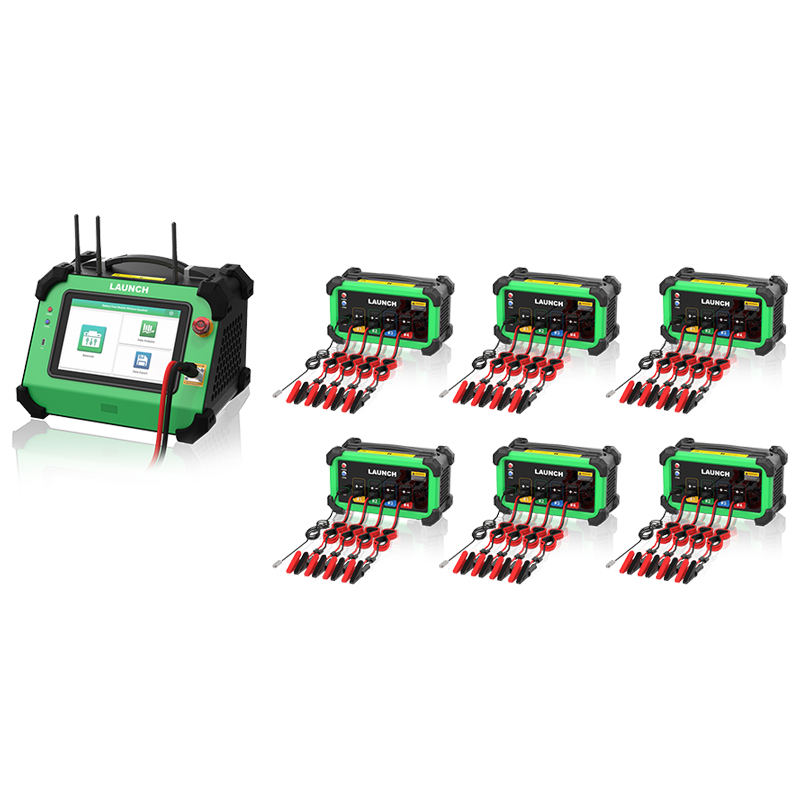

Charging Unit + 6 Discharging Units

1. Separate charging and discharging design, with balancer channels freely combinable, supporting simultaneous balancing of up to 24 battery cells. (Each discharge unit supports 4 channels)

2. Wireless networking communication facilitates the expansion of balancer channel quantity.

3. Compatible with all common lithium battery types on the market.

4. Supports two modes: charge&discharge balance and discharge balance.

5. High-precision voltage acquisition module for safe and precise balancing control.

6. Each battery cell is wired separately and independently, effectively avoiding connection errors.

7. Safety Protections: Overvoltage, undervoltage, overcurrent, output short circuit, reverse connection, overtemperature, etc.

Charger parameter

Model: EVB624
Power input: AC 90~264V 50/60Hz
Voltage range: DC 0~112V
Voltage accuracy: ≤±1% @48~112V DC; ≤±0.5V @10~48V DC
Current range: 1~40A
Current accuracy: ≤±1% @Output≥4A
Single device supports number of discharge module: Support up to 6 wireless discharge modules(24 channels)
Power: 3200W
Display: 10.1-inch touch screen

Wireless Discharge module parameter

Power input: 5V 2A
Discharging voltage range: DC 2.8~4.2V
Discharging voltage accuracy: ±(0.1%FS+5mV)(Max.range 5V)
Discharging Current range: 1~10A(single channel)
Discharging Current accuracy: ±1%FS(Max.range 10A)
Single discharge module supports number of cell: 4
Power Maximum: 42W for single channel; 168W for four channels
Data Export: Wi-Fi; Bluetooth
Main unit protection: Over current, Over temperature, Reverse connection protection
Cooling: Fan
Temperature: Operating temperature range: -10-50 ℃; Storage temperature: -20~70℃
Environment Humidity: Related humidity 5%-90% RH
