Description

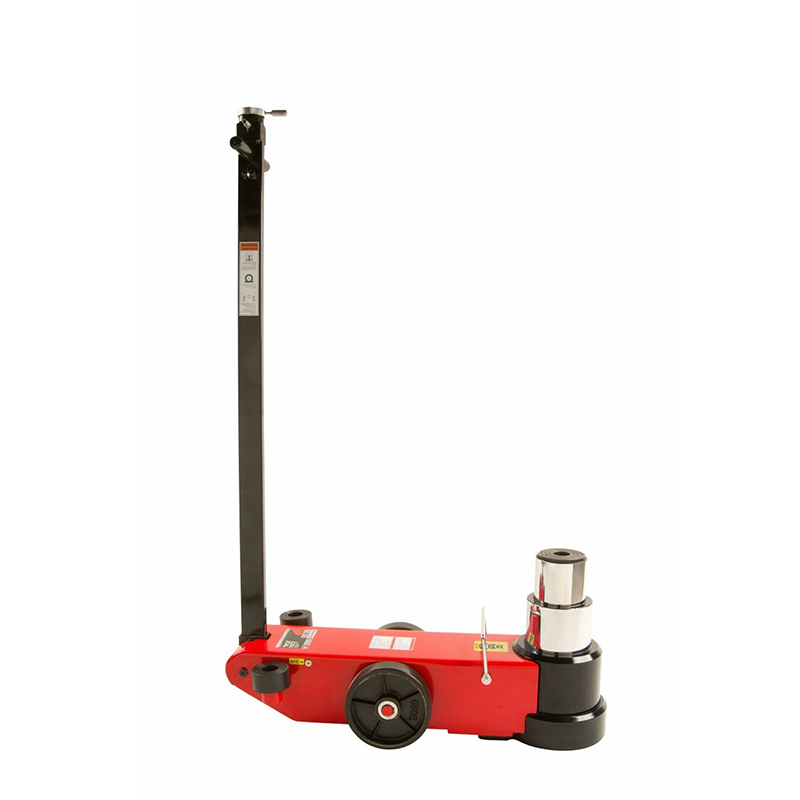

Pneumatic hydraulic trolley jack with a lifting capacity of 50/25/10 tons.

Features a powerful pneumatic motor for lifting the nominal load
Built-in bypass hydraulic system to prevent emergency overloads
Extended handle for convenient positioning and movement
Includes 2 extensions 45 and 75 mm

Lifting capacity 50 / 25 / 10 tons
Lifting height of 1 stage (50 tons) 222 mm
Lifting height of 2 stages (25 tons) 283 mm
Lifting height of 3 stages (10 tons) 352 mm
Clearance 160 mm
Working pressure 7 – 12 bar
Jack length 875 mm
Jack width 282 mm
