Description

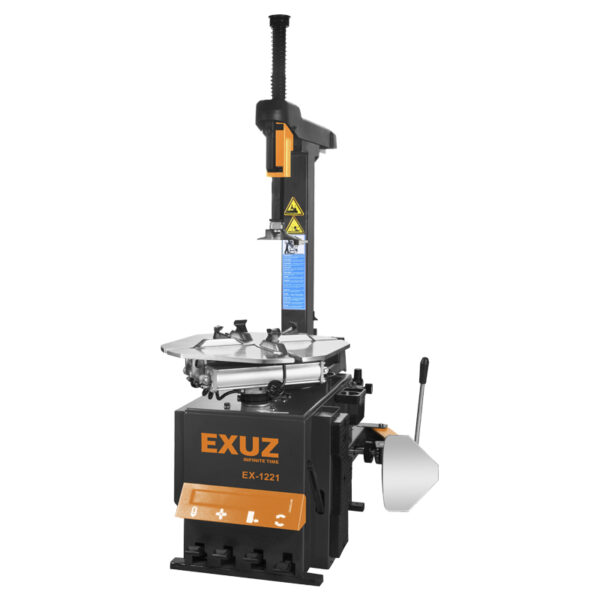

Semi-automatic swing arm tire changer machine for wheels with a rim from 12? to 24? (max. tire diameter 1000 mm./39?, max. tire width 355mm./14?). Suggested for low-mid volume shops, garages, and repair shops.

EX-1221 tire changer machine represents the Unite entry-level solution, suggested for low-mid volume shops, garages, and repair shops. Simplicity is the strong point of this model, which combines solid and reliable design, Unite experience, and a classic well-known operating mode.

Features:

1. INTERNATIONAL PATENT 098 HELP ARM (RIGHT): makes low profile tyre changing easier.

2. Adopt rugged & durable one-piece casting jaws

3. Adjustable pressing shovel helps to press tyre with less effort.

Additional information
External locking rim dimensions
10~21″

Internal locking rim dimensions
12~24″

Max.Wheel diameter
?1000mm (39″)

Max.Wheel width
?355mm (14″)

Working Pressure
8-10bar (116-145 psi)

Opitonal Power supply
110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power
0.55/0.75/1.1 kw

Noise Level
<75 dB
