Description

2-Post Lift / 4T Capacity / 75.2? Overall Height

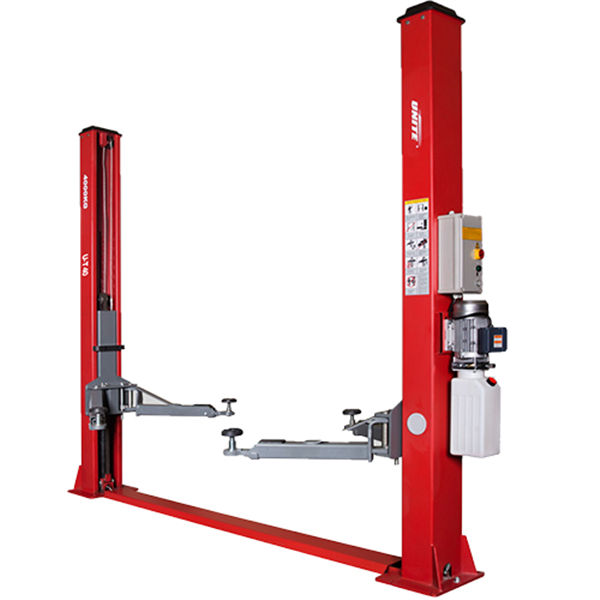

The U-T40 is a base-plate two-post lift designed for low ceiling garages. The total column height of 1910 mm allows this lift to be installed in almost any professional or home garage with a ceiling as low as110 mm.

Safety Features:

1. Dual hydraulic cylinders
2. Safety valve for anti-explosion of hydraulic system
3. Synchronization cables
4. Chain protector
5. Easy access grease nipple design
6. Dust protection

Specification
2 post lift
Product: Floor Cover Plate Two Post Vehicle Lift
Product Code: U-T40
Capacity: 4T
Lifting height: 1910 mm 75.2″
Min height: 110 mm 4.3″
Max car width: 2616 mm 103″
Power supply: 220V 1PH 50/60Hz 2.2KW 220/380V 3PH 50/60Hz 2.2KW
Release: Dual manual Lock Release
Shipping Information: Loading QTY : 30 units/20′ CTNR 2940*455*670mm (606.5 kg/units)
