Description

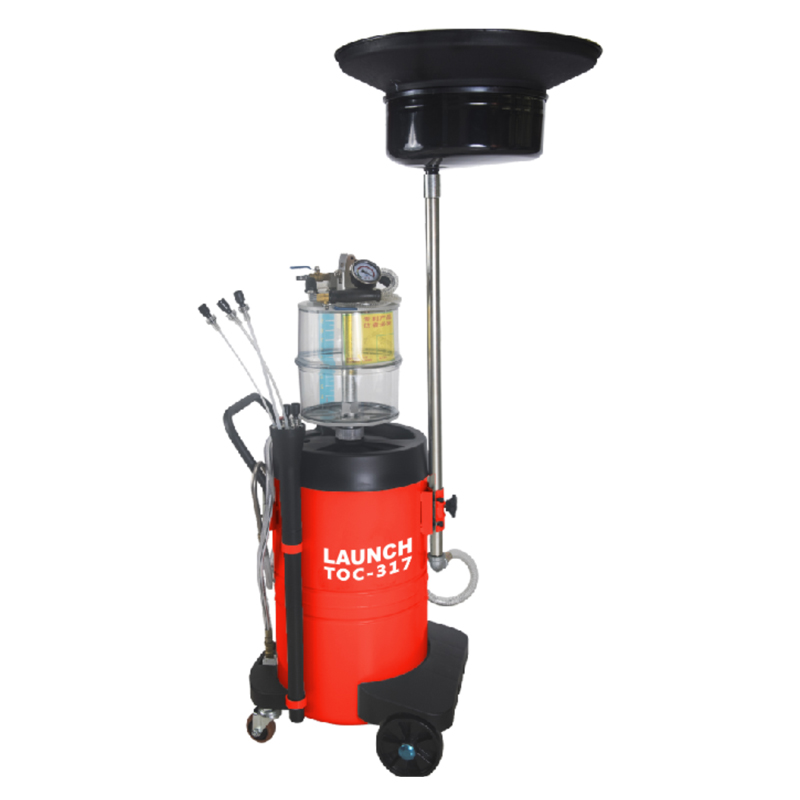

The TOC-317 is an Automotive Engine Oil Changer from LAUNCH, it is used to extract and collect engine waste oil in the process of car maintenance and service.

Features
1.Extract the engine waste oil without lifting the car
2.Using the principle of compressed air and a specially designed vacuum generator for the oil pumped process
3.Disassemble the Oil Sump Drain Screw without the Lifting Machine
4.Equipped with Specially Designed Vacuum Generator

Specification
Working Pressure: 8~10bar
Vacuum Degree: 0~negative 0.1Mpa
Safety Valve Value: 3.5bar
Measuring Cup Volume: 10L
Oil Storage Tank Volume: 72L
Discharge Inlet Pressure: 1bar
