Description

Featuring a new design and upgraded hardware, the Launch O2-2 Scope box is a versatile and easy to use module that detects high level faults. On various electrical components, such as sensors, actuators and cirsuits. By integrating with the X-431 series scan tools via O2-2 application, the O2-2 delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge it is scan tools functionality.

Home / O2-2 Scopebox

Featuring a new design and upgraded hardware, the Launch O2-2 Scope box is a versatile and easy to use module that detects high level faults. On various electrical components, such as sensors, actuators and cirsuits. By integrating with the X-431 series scan tools via O2-2 application, the O2-2 delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge it is scan tools functionality.

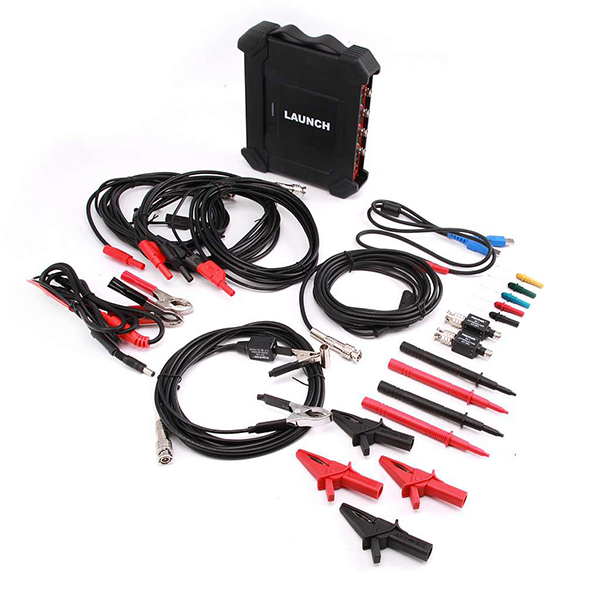

O2-2 Scopebox
Featuring a new design and upgraded hardware, the Launch O2-2 Scope box is a versatile and easy to use module that detects high level faults. On various electrical components, such as sensors, actuators and cirsuits. By integrating with the X-431 series scan tools via O2-2 application, the O2-2 delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge it is scan tools functionality.

PRODUCT SPECIFICATIONS

CHANNELS 4
BANDWIDTH 100 Mhz
RASING TIME Less than 3.5 ns (Typical)
ACCURACY 3%
INPUT TYPE Single-ended, BNC connector
OVERLOAD PROTECTION: 200V on single input
VERTICAL RESOLUTION: 8bits
INPUT COUPLING DC,AC
MAX.SAMPLE RATE 1G ?for four channels ?
BUFFER MEMORY 50M (for four channels ?
TIMEBASE RANGES 50ns-1ks (1 channel? 100ns-1ks (2 channel) 200ns-1ks (4 channel)
POWER INTERFACE USB Port, DC IN port
DATA EXCHANGE VIA USB
TRIGGER MODE Normal, Auto and single SEQ
ADVANCED TRIGGERS Edge, Pulse width
