Description

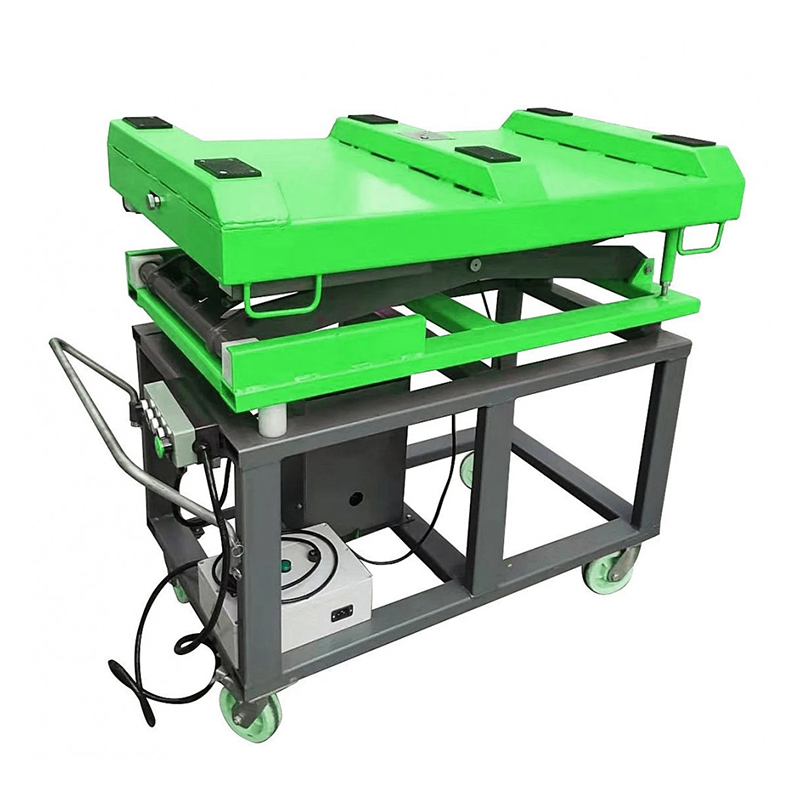

LAUNCH TLT615D is ideal for EV Battery pack replacement and other routine maintenance. This compact lift is designed for room limited workplace, and it is capable of operating safely and efficiently by mechanical safety lock.

Features
1. Working for battery-pack removal and used as specialty lifting bracket.
2. Easy to lift and lower with electrical controller, secured by mechanical safety lock.
3. Durable and rigid tubular steel features tear resistance, high abrasion resistance, shock absorption buffer.
4. The maximum lifting weight is 1500kg, and the maximum lifting height is 1850mm.

Specification
Supply Voltage: AC 220V 50Hz
Operating Voltage: DC 24V
Power: 2.2kw
Rated Ligitng Weight: 1500kg
Lowest Height: 1200mm
Highest Height: 1850mm
Platform Width: 800mm
Platform Length: 1380mm
Ascending Tune:?30S
Descending Time:?40S
