Description

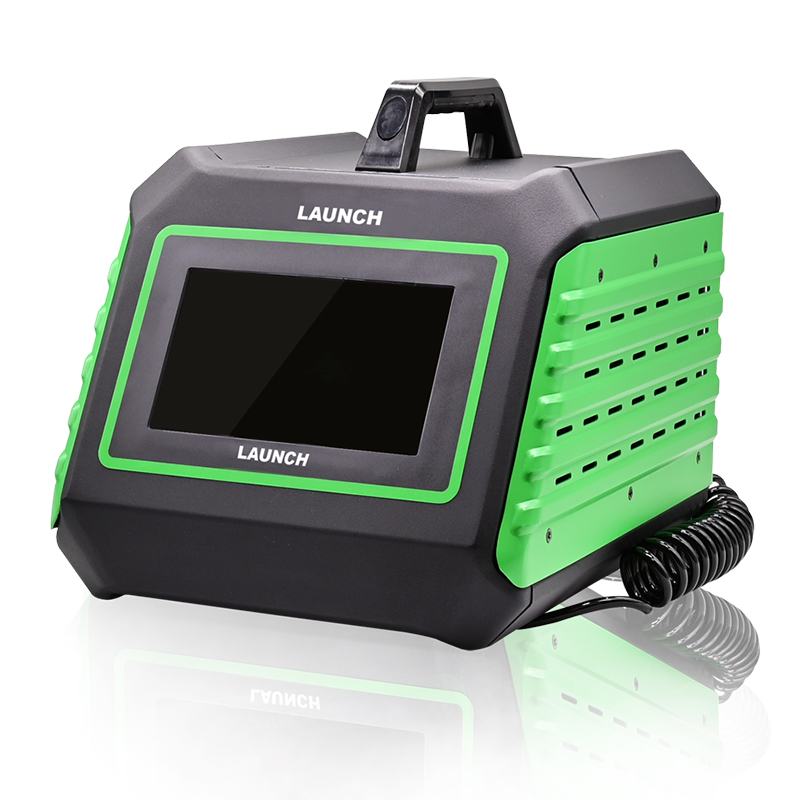

ELT500 is non-destructive testing equipment with high precision, which uses compressed air as a medium to apply a certain pressure to the inner cavity or surface of the product to be tested, and then uses a high-sensitivity sensor to detect the pressure changes to determine the tightness of the product.

Features
1. The 7-inch LCD touch screen and the intuitive menu simplified the operation.
2. High-sensitivity pressure sensing, greatly improving test accuracy and stability.
3. The test process can display the progress time of each stage.
4. Real-time display of pressure dial and display of process pressure curve.
5. The test parameters of standard parts can be preset and used directly, which is convenient and quick.
6. Parameters such as work piece number, volume, pressure, time of each stage, and leakage limit can be preset.
7. Sound and light alarm will be issued when the test is abnormal or failed.

Specification
Power: 20W(Max)
Test Pressure Range: 0~30Kpa
Sensor Resolution: 1Pa
Test Accuracy: ?5Pa
Communication Interface: RS485/USB
Data Storage Method: Internal storage, or data upload to USB drive
Power Supply: AC 90~265V
Air Source Requirements: 0.1~1.0 Mpa dry compressed air
Intake Port/Test Port: ?6mm/?6mm
Working Temperature/Humidity: -10~55?/10%~90% @25?
