Description

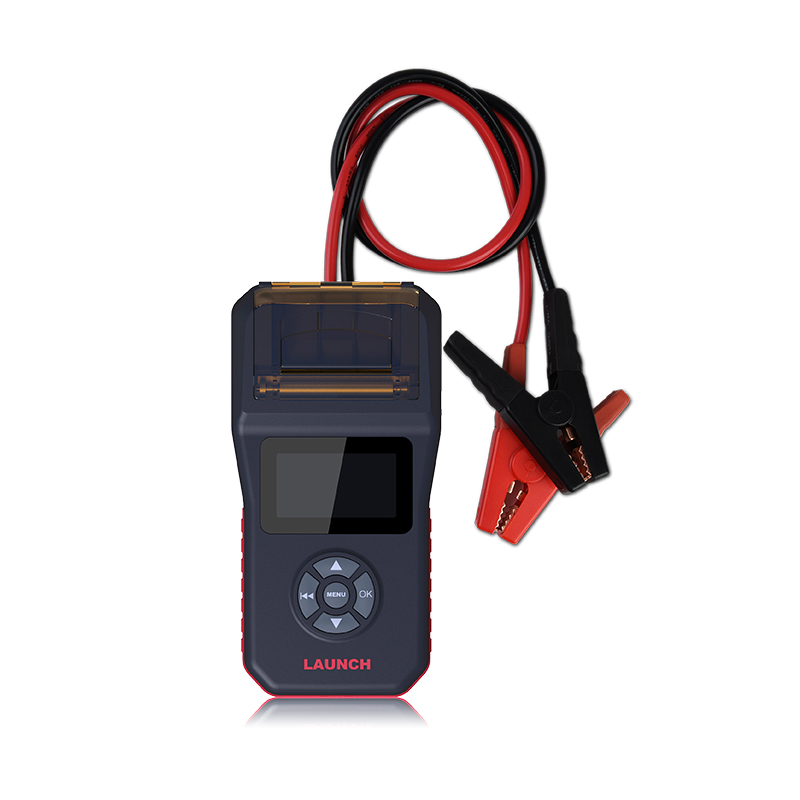

BST560 and BST860 support vehicle battery health check, starting test and charging test without heating, discharge, spark and operating risks. BST860 has built-in thermal printer which can print the test report immediately.

Features
Generate the health report within 3 seconds and intuitively display all data on the color screen.
The reports can be printed anytime by built-in thermal printer. (BST-860 only)
Available to the batch inspection of battery by testing continuously and repeatedly.
Applicable vehicles include car, motorcycles, lawn mowers and other gardening machines, group 31, commercial vehicles 4D/8D.
Safety always comes first. No heating, no discharge, no spark and no operating risks.

6 kinds of tests

Ripple Detection
Battery Test
Electric Current Test
Starter Test
Charging System Test
Voltage Test

Supported battery standards
CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB

Applicable Battery Types
BST-860: 12V and 24V batteries (Lead-acid battery, Gel battery and AGM battery)
BST-560: 12V batteries (Lead-acid battery, Gel battery and AGM battery)

Specification
Display Screen: 4-line graphic LCD display with backlight
Working Temperature: -18?~50?
Test Cable: 80mm standard cable
Case Material: ABS acid-proof plastic, industrial case design
Dimension: 188*95*41 mm
Weight: 450g
