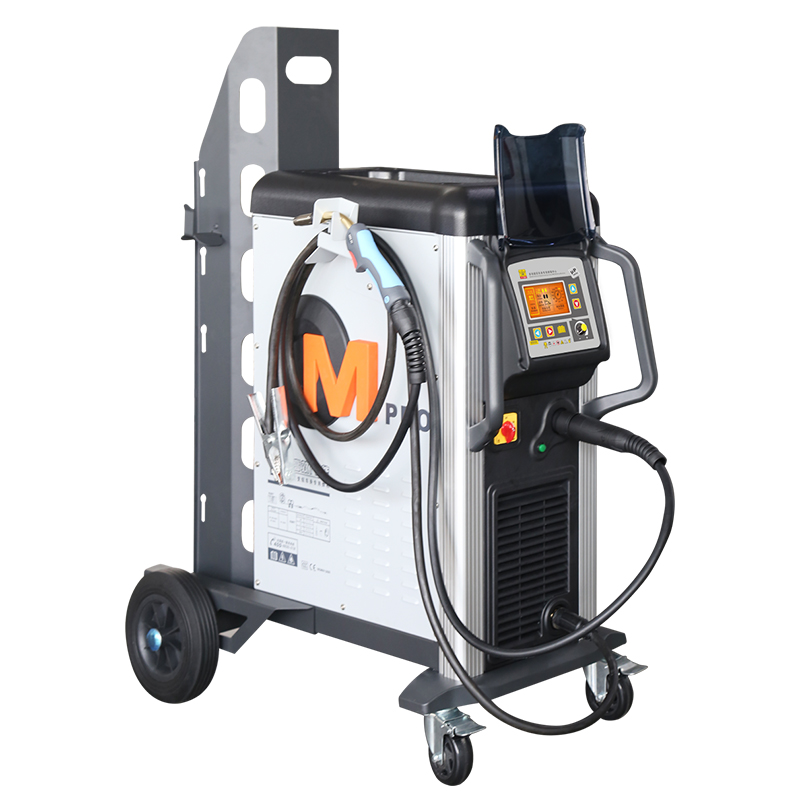

Description

Features

? IGBT inverter pulsed and soft switching control technology allows for energy efficient steady welding with fast arc ignition. aterials’ mechanical properties are maintained with less welding deformation and spatter. User can quickly and easily weld car bodies with various materials and achieve a perfect performance. There is also less post welding treatment work and less welding sparks.
? With industrialized design scheme, the welding parameters are provided automatically to match the workpiece material and thickness. The users only need to set the material and thickness. Complete with the international advanced DSP microprocessor chip. Automatic memory function allows the users to save the welding parameters, safe and efficient.

Specification

Technical Data
Input Voltage: 400V or 230V
Rated Input Power: 9.5KVA
Rated Input Current: 14A
Min ~ Max Output Current: 35A/15.7V-300A/31V
Duty Cycle: 220A/100%-300A/65%
No-load Output Voltage: 60V
Efficiency: ?90?
Power Factor: ?0.95
Insulation Grade: F
Steel Wire Diameter: ?0.6-1.2mm
Alu Alloy Wire Diameter: ?1.0-1.2mm
Copper Alloy Wire Diameter: ?0.6-1.4 mm
Wire Feeder: Four-roll drive

Due to the continuous innovation and upgrade, our products’ features may be updated.
Please refer to actual products or contact us for more information.
