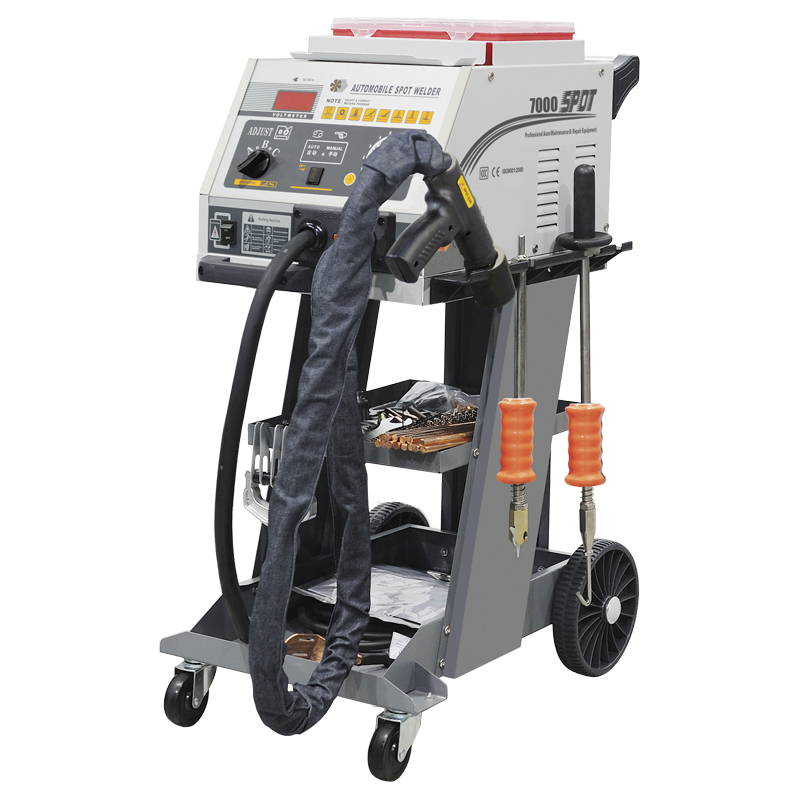

Description
Features
? Microprocessor control system optimizes the welding parameters. User friendly design, all you have to do is select the welding current
corresponding to the workpiece thickness to achieve the best weld quality.
? Automatic mains voltage monitoring.
? The welding gun testing function evaluates the usage status of the welder more comprehensively.
? Overheating protection.
? High precision time and power adjustment system.
? Complete with triangle washers for dent pulling.
? Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud
welding, OT washer welding, triangle washer welding etc.
? Digital display.
? Large pulling hammer and waveform wire welding.
? With several welding currents to choose from.
Specification
Technical Data
Input voltage: AC 200V or 380V 50/60Hz
Input power: 20KVA
Input current: 51A
Max welding current: 5200A
Output voltage: 1-13V
One-side welding thickness: 0.8+1.0mm
Operation way: continuously
Weld timing range: 0-99s
weld current regulation: ABC
Welding Functions
1) Carbon Rod Heating
2) Washer Welding
3) Single-sided Spot Welding
4) OT Washer Welding
5) Sheet Metal Flattening
6) Claw Puller Dent Pulling
7) Triangle Washer Spot Hammer Dent Pulling
8) Stud Welding
9) Pneumatic / Manual Vacuum Cupule Dent Pulling
10) Carbon Rod Stitch Welding
11) Hook Puller Dent Pulling
12) Wavy Wire Welding
Due to the continuous innovation and upgrade, our products’ features may be updated.
Please refer to actual products or contact us for more information.
Accessories
Quantity
F002 Pulling Hammer with Hook: 1 set
F003 Dent Pulling Spot Hammer: 1 set
F006 Wavy Wire: 1 set
F007 Carbon Rod: 15 pcs
F008 Spot Welding Electrode Tip: 3 pcs
F009 Carbon Rod Connector: 1 pc
F010 Wavy Wire Electrode Tip: 1 pc
F011 Washer Connector: 1 pc
F014 Claw: 1 pc
F015 Triangle Washer: 1 pc
F016 Stud: 10 pcs
F017 ?12mm Washer: 30 pcs
F018 Earth Clamp: 15 pcs
F019 Manual Cupule: 1 pc
F030 OT Washer: 1 pc
F033 Wrench: 20 pcs
F034 Stud Connector: 1pc
