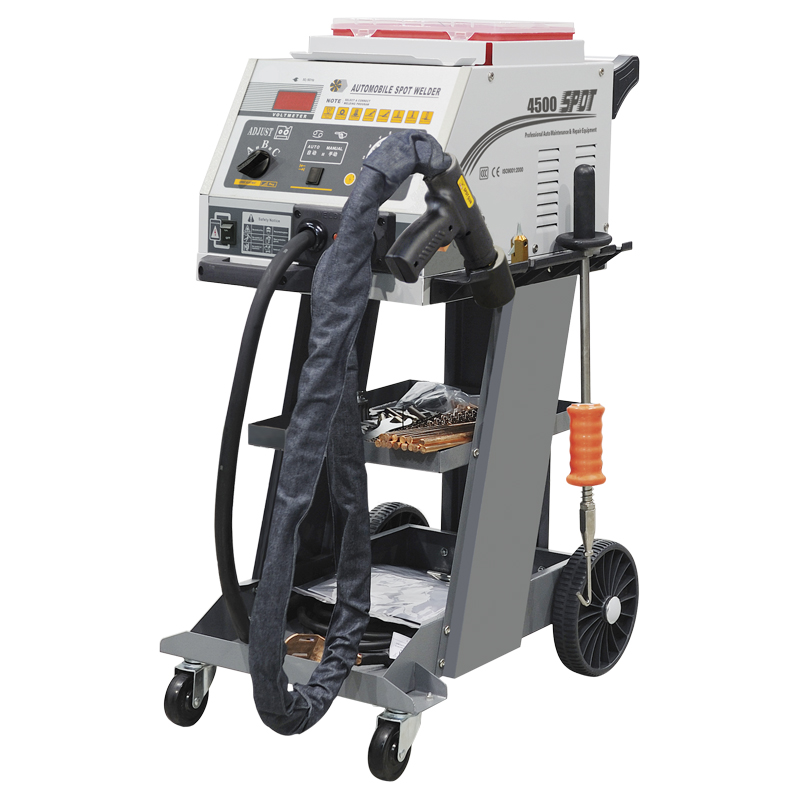

Description

Features

? Microprocessor control system optimizes the welding parameters. User friendly design, all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
? Automatic mains voltage monitoring.
? The welding gun testing function evaluates the usage status of the welder more comprehensively.
? Overheating protection.
? High precision time and power adjustment system.
? Complete with triangle washers for dent pulling.
? Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud welding, OT washer welding, triangle washer welding etc.
? Digital display.
? Large pulling hammer and waveform wire welding.
? With several welding currents to choose from.

Specification

Technical Data

Input Voltage: AC 200V or 380V 50/60Hz
Input Power: 16KVA
Input Current: 42A
Max Welding Current: 4000A
Output Voltage: 1-13V
Operation Way: Continuously
Weld Timing Range: 0-99s
Weld Current Regulation: ABC

Welding Functions

1) Carbon Rod Heating
2) Washer Welding
3) Triangle Washer Spot Hammer Dent Pulling
4) Carbon Rod Stitch Welding
5) Hook Puller Dent Pulling

Due to the continuous innovation and upgrade, our products’ features may be updated.
Please refer to actual products or contact us for more information.

Accessories

F002 Pulling Hammer with Hook: 1 set
F007 Carbon Rod: 3pcs
F009 Carbon Rod Connector: 1pc
F011 Washer Connector: 1pc
F013 Triangle Washer Connector: 1pc
F015 Triangle Washer: 10pcs
F017 Washer: 15pcs
F018 Earth Clamp: 1pc
F033 Wrench: 1pc
