Description

Features

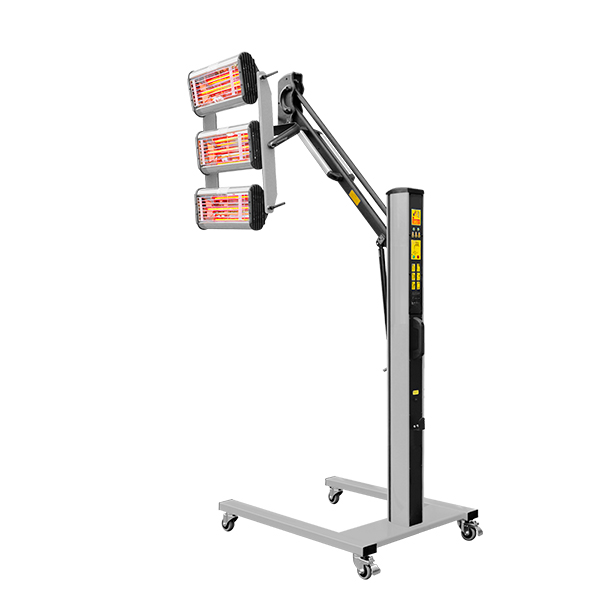

? Made from aluminium alloy and 304 grade bright stainless steel reflectors.
? Equipped with VPOWER’s 21″ quartz short wave infrared halogen lamps.
? Hydraulic lifter with independent switch and 360o rotation.
? Power supply of 200-400V, 50/60Hz and 3 ?1100W.
? Curing area of 1200mm ? 1000mm.
? Adjustable temperature range of 40?-100?.
? Adjustable timer of 0min-60mins.
? Automatic overload protection.
? Each emitter can be independently controlled.

Specification

Technical Data
Input Voltage: AC200-240V
Input Power: 3x1100W
Curing Area: 1200x1000mm

Suggested Curing Times

Rust Proof Primer: 4-8min
Intermediate Primer: 2-3min
Primary Filler: 5-8min
Secondary Filler: 3-6min
Top Coat: 6-10min
Varnish: 5-10min
