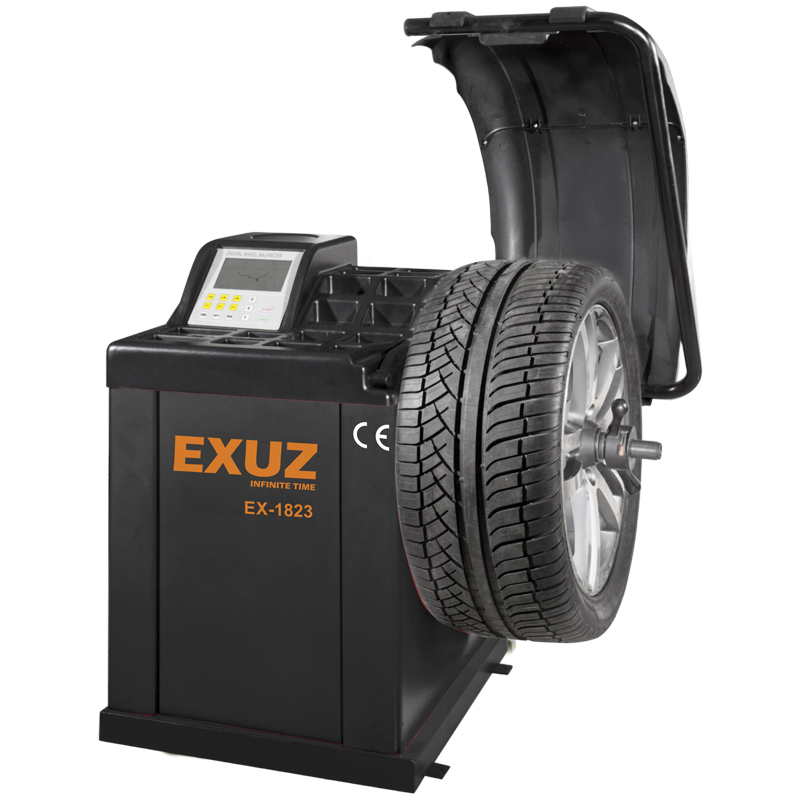

The EX-1823 wheel balancer is a highly accurate and dependable no-frills balancer that features our proprietary self-calibration and self-diagnosis functions for critical reliability and repeatability.

Features:
1. High precision main shaft ensures repeated measuring accuracy
2. Automatic distance and wheel diameter measuring
3. Tracking sticking balancing mode can locate weights precisely and rapidly
4. With self-calibration and self-diagnosis functions
5. LED light & Digital display
6. Bigger machine body

Additional information
Product Code
EX-1823

Balancing Modes
8

Balancing speed
200 r.p.m

Rim diameter
252-610 mm 10″-24″

Rim width
40-510 mm 1.5″-20″

Split and hidden weight solution
?

Measuring time
8s

Balancing accuracy
?1g(?0.04 oz)

Max. wheel weight
65 kg (143 lbs)

Power supply voltage options
110v (1ph)/ 220v (1/3ph)/380v(3ph)

Option motor power
0.20/0.37kw

Noise level
< 70dB N/G weight 99/113kg (218/249lbs) Package dimension 960*760*1180mm (3.1*2.5*3.9ft)
