Description

Pneumatic operated tilting column with double helper arms and tubeless tire inflating system

Technological Features:

1. Full automatic pneumatic tilting column with pneumatic lock
2. Pneumatic controlled double luxury help arm
3. Central positioning arm device
4. Double helper arms demount the tire easily
5.360 0 rotary type pressing shovel
6.28″ large turntable and powerful motor, suitable for low profile tire
7. Quick air booster makes the tire and rim jointed instantly, especially suitable for low profile tire

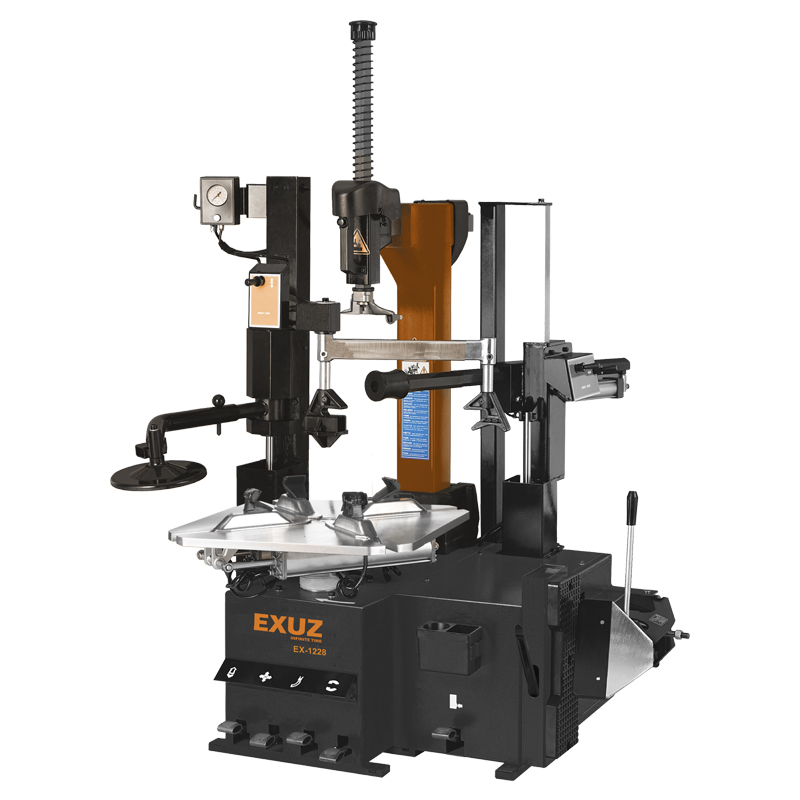

Technical specification of EX-1228 Car Tire Changer

Motor power: 0.75kw/0.55kw/1.1kw
Power supply: 220V/400V/110V
Max. Wheel diameter: 45″ (1143mm)
Max. Wheel width: 16″ (406mm)
Outside clamping: 12″-25″
Inside clamping: 14″-28″
Air supply: 8 bar
Bead breaker force: 2500kg
Noise level: <75dB
