Description

Description

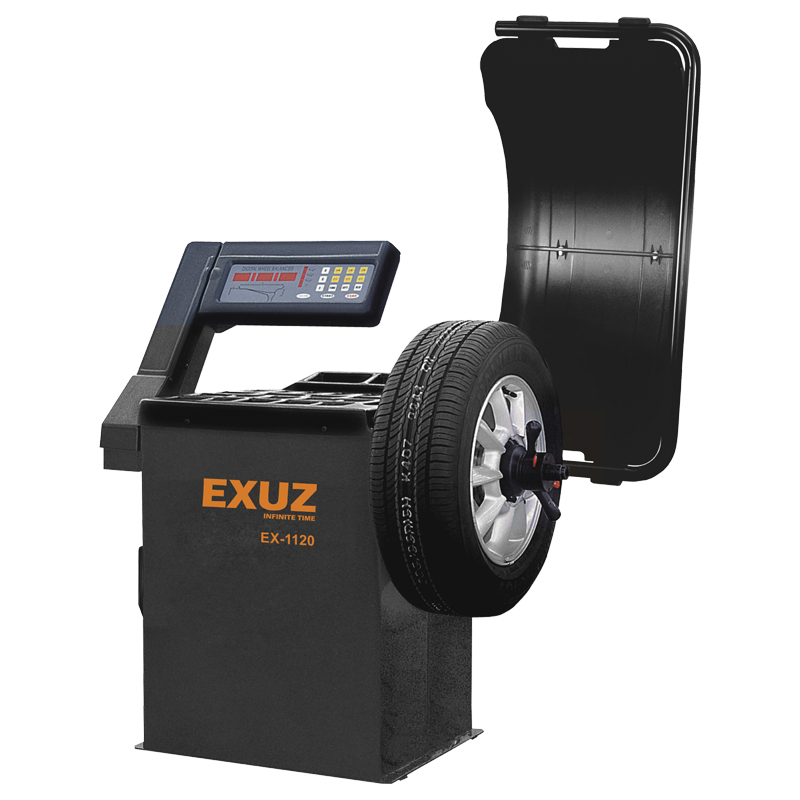

The new EX-1120 Wheel Balancer is designed for low-volume balancing shops. Get the legendary Unite durability and performance in a compact package that is sized for small footprints, easy to use, and affordable. These durable machines are equipped with basic features, intended for low-volume usage.

Features:
1. High precision main shaft ensures repeated measuring accuracy
2. Automatic distance and wheel diameter measuring
3. Tracking sticking balancing mode can locate weights precisely and rapidly
4. With self-calibration and self-diagnosis functions
5. LED light & Digital display

Additional information
Product Code
EX-1120

Balancing Modes
5

Balancing speed
200 r.p.m

Rim diameter
252-610 mm 10″-24″

Rim width
40-510 mm 1.5″-20″

Split and hidden weight solution
?

Measuring time
8s

Balancing accuracy
?1g(?0.04 oz)

Max. wheel weight
65 kg (143 lbs)

Power supply voltage options
110v (1ph)/ 220v (1/3ph)/380v(3ph)

Option motor power
0.20/0.37kw

Noise level
< 70dB N/G weight 89/108kg (196/238 lbs) Package dimension 960*760*1250mm (3.1*2.5*4.1ft)
