Description

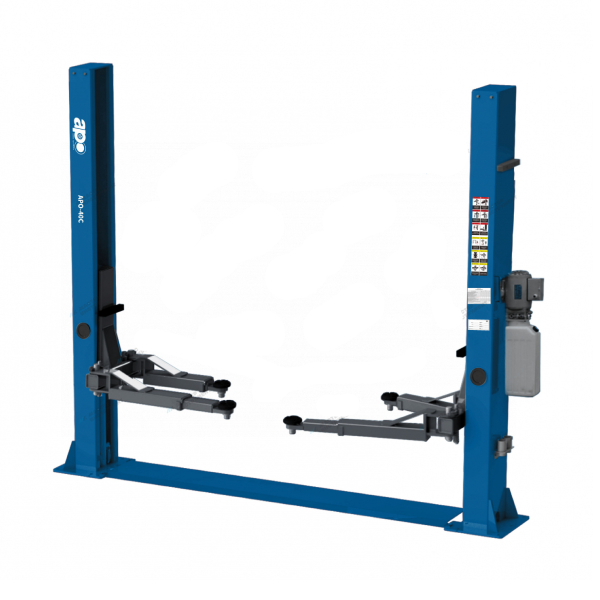

The two-post lift with lower synchronization APO-40C is professional equipment for servicing cars and trucks in car service centers and service stations. It is designed to lift a vehicle for performing maintenance work.

Load capacity – 4 tons.
Two-section long grabs – 146 cm.
Lifting height – 182.5 cm.
Cable thickness – 9.3 mm.
Time-tested reliable carriage design.
Mechanical lock release system prevents accidental lowering of the car.
Equipped with a mechanism for locking the rotation of the grabs.
The lift’s lifting height allows servicing cars with low ground clearance.
Anchor bolts and hydraulic oil as a gift!
The two-post lift APO-40C is safe and reliable equipment for performing various types of maintenance and repair work on vehicles in car service centers and service stations.

Spacers for frame vehicles are NOT included in the kit and are purchased separately.

Scope of delivery:
Lift column – 2 pcs.
Hydraulic station – 1 pc.
Paws – 4 pcs.
Cable – 2 pcs.
Anchor bolts – 10 pcs.
Hydraulic hose – 2 pcs.
Screw supports with rubber pads – 4 pcs.
Adapters, nuts, bolts – 1 set.

Specifications
Loading capacity: 4 tons
Power: 2.2 kW
Power voltage: 220V/380V
Overall height: 2820 mm
Overall width: 3185 mm
Lifting height: 110?1825 mm
Distance between posts: 2820 mm
Length of paws
front: 906 – 1460 mm
rear: 705 – 1045 mm
Lifting time: 50 sec
Hydraulic pump tank capacity: 10 l
