Description

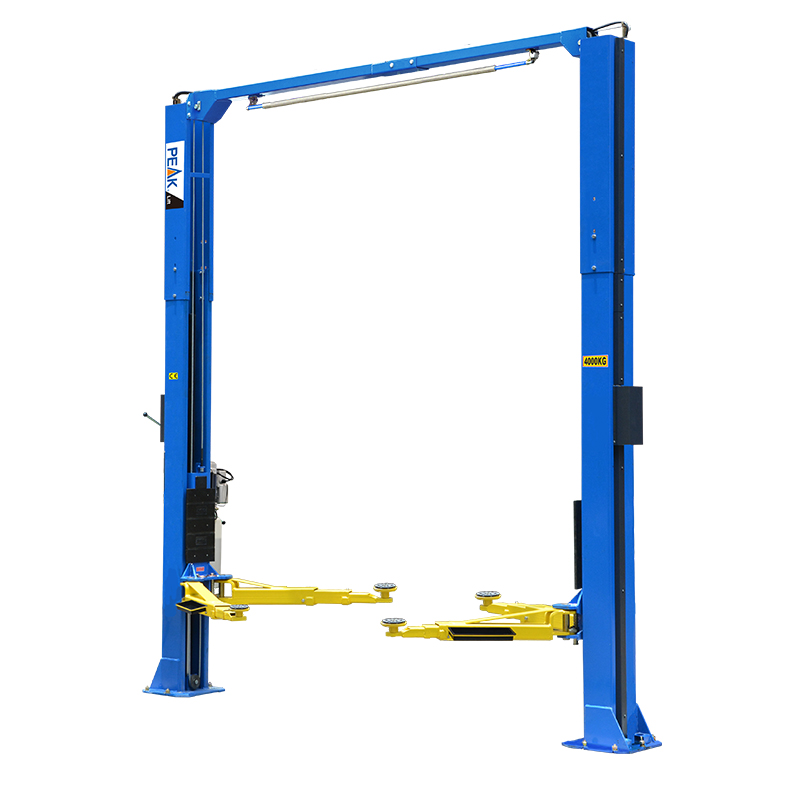

PEAK 209C – two-post electro-hydraulic lift with upper synchronization and a lifting capacity of 4 tons. Equipped with mechanical stoppers with unlocking on one column. Low pickup of 90 mm allows you to work with low machines. During installation, you can choose the height of the lift, depending on your room, 3621 mm or 3821 mm.

Features of PEAK 209C lifts

2 years warranty;
Thickness of the metal rack is 5.5 mm;
Thickness of the synchronization cables is 8.5 mm.;
Dual-circuit hydraulic cylinders made according to ANSI Japan standards;
Symmetrical three-section paws;
Pickup height is 90 mm;
The lift kit includes:
tool tray – 2 pcs.;
8 spacers to increase the pickup height;
Removal from the axe with a lever on one column.
Dual-circuit hydraulic cylinders developed according to ANSI standard by N.O.K (Japan)
Internal carriages with maintenance-free polyurethane sliding blocks
Unlocking of stoppers on one column

Symmetrical 3-section legs, possibility of adjusting front and rear;
Automatic paw stopper when lifting a car
Lifting height of only 90 mm
The kit includes telescopic extensions to increase the lifting height
Rubber pads on the carriages prevent damage to the car doors when opening

Technical specifications
Load capacity: 4.0 t
Lifting height: 1815-2044 mm
Lift height: 3621/3821 mm
Lift width: 3428 mm
Distance between columns: 2850 mm
Height to spacers: 90 mm
Front paw length: 722-1285 mm
Rear paw length: 885-1343 mm
Safety device: Mechanical
Lifting time: 52 seconds
Power: 2.2 kW 220/380V
