Description

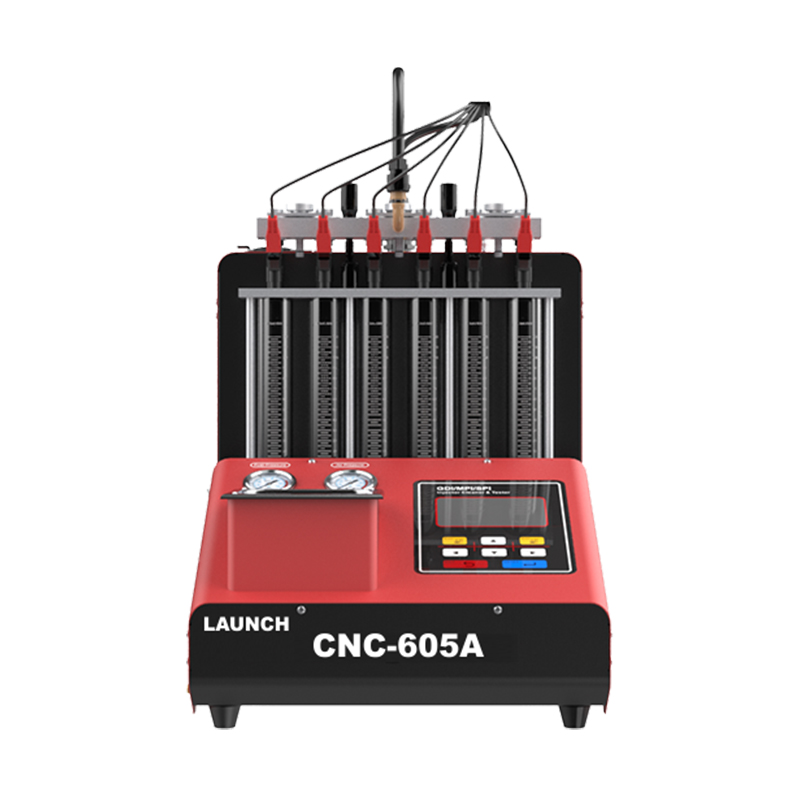

GDI Injector Cleaner & Tester CNC-605A

CNC605 launched by SmartSafe, is a Injector Cleaner and Tester suitable for GDI, EFI, SFI and other injectors. The injector can be cleaned and tested by simulating the engine condition. It can also be used to clean the fuel injector ad fuel supply system on the vehicle without disassembly. It is ideal for repair and maintenance service centers!

Functions
What Can Be Solved
in Your Shop
Suitable for different occasions and functions, CNC605 Injector Cleaner and Tester is a classic device for SmartSafe cleaning and maintenance.

Functions

Working Mode Selection
Can select GDI or EFI working mode based on the injector type ?

Ultrasonic Cleaning
Capable of simultaneously ultrasonic cleaning multiple injectors, effectively removing carbon buildup ?

Uniformity/Spray Testing
Detects the uniformity of fuel injection quantity for each injector and allows comprehensive
observation of the injector spray pattern using background lighting ?

Sealing Test
Tests the sealing and leakage of injectors under system pressure ?

Fuel Injection Quantity Detection
Measures the fuel injection quantity of injectors under a constant 15-second injection condition ?

Automatic Cleaning and Testing
Under specific working parameters, realistically simulates injector testing under various conditions ?

Reverse Flush
For the uniformity/spray testing item, performs a reverse flush using a reverse flush adapter to remove
internal injector contaminants and residues attached to the filter screen ?

Non-Dismantle Cleaning
Equipped with various non-dismantle cleaning adapters, allowing non-dismantle cleaning
and maintenance for multiple vehicle models ?

Parameters
Power Supply: AC110V/AC220V 50Hz/60Hz
Revolutions Per Minute: 100~9900rpm Step length 100rpm
Main Engine Power: 350W
Pulse Width: 0.5~25ms Step length 0.1ms
Ultrasonic Cleaning Power: 100W
Timer Range: 1~30min
Fuel Pressure: 0.1~10 bar
Tank Capacity: 3L
Air Inlet Pressure: 5~8 bar
